BSS AR133 Active DI Box (Battery/ Phantom Powered)

BSS AR133 Active DI Box (Battery/ Phantom Powered)
BSS AR133 Active DI Box (Battery/ Phantom Powered)
Out Of Stock
BSS AR133 Active DI Box (Battery/ Phantom Powered)
BSS AR133 Active DI Box (Battery/ Phantom Powered)

BSS AR133 Active DI Box (Battery/ Phantom Powered)

AED 541
  • Stock: Out Of Stock
  • Model: AR-133

The AR-133 Active DI Box from BSS Audio uses an enhanced version of the same audio path as the AR-116, now regarded by many people as a reference standard. The sound quality is legendary, particularly on acoustic and bass guitars. Numerous applications can be satisfied by the AR-133. For example, as well as the traditional guitar use, the AR-133 can be used with keyboards, DJ consoles, amplifier outputs, and other electronic sources. An additional bonus is the ability to use the AR-133 as an active balancing device.Input connectors are both 1/4" jack sockets and an XLR socket, the latter meaning that the AR-133 can be used to convert unbalanced signals to a balanced output on XLRs throughout. The arched case allows cables to run back underneath the unit from the end for neat cable management. Input attenuation is 0, -20 or -40dB, making the box suitable for instrument, line or amplifier levels on inputs. On the output side, a ground-lift switch is provided for quick solutions to ground-loop problems.The BSS AR-133 includes phantom power and battery supplies as standard. Should the phantom power from the console fail or be accidentally switched off, the AR-133 automatically switches over to the internal 9V battery providing uninterrupted use. This unit is housed in a rugged aluminum extrusion case, with robust polyurethane end-cheeks which give the AR-133 a very distinctive look.

FEATURES

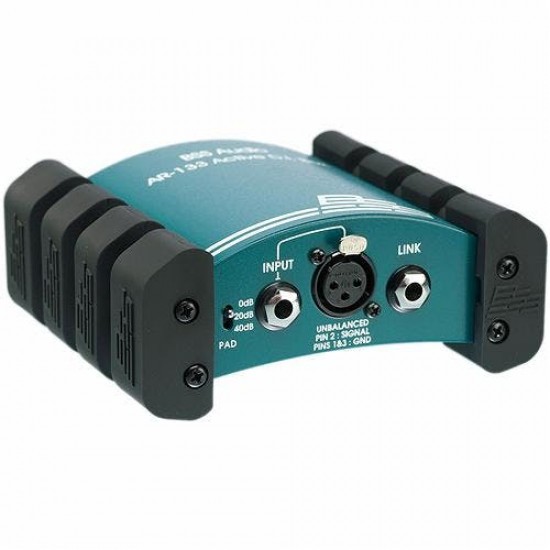

  • Inputs: XLR and 6.3mm jack
  • Link: 6.3mm jack
  • Output: XLR

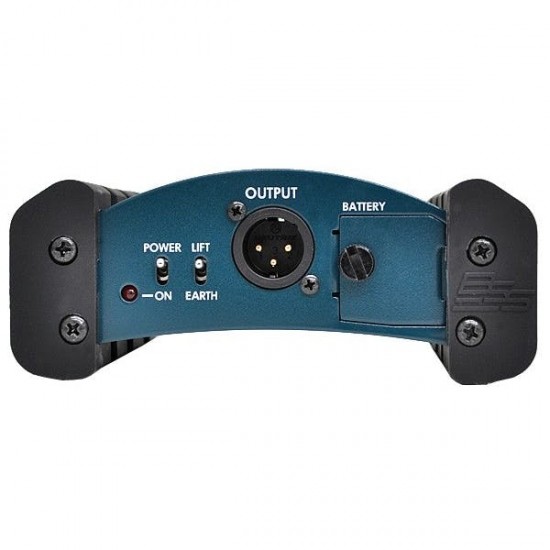

  • Output with ground lift
  • Pad: -20/ 40 dB
  • Galvanic isolation
Signal Processors
Type Active DI
Frequency Response 30Hz to 20kHz, +0dB/-1dB
Dimension 59 mm x 124 mm x 143 mm (2.3" x 4.9" x 5.6")
Channels 1
Pads -20dB, -40dB
Power Source 9V battery
Ground Lift Yes
Weight 650 gms, excluding batteries
Phantom Power +20 volts DC to +48 volts DC
Inputs 1 x XLR, 1 x TS
Outputs 1 x XLR, 1 x TS Link output
