Behringer Ultralink MS8000 Microphone Splitter

Behringer Ultralink MS8000 Microphone Splitter
Behringer Ultralink MS8000 Microphone Splitter
Behringer Ultralink MS8000 Microphone Splitter
Behringer Ultralink MS8000 Microphone Splitter

Behringer Ultralink MS8000 Microphone Splitter

AED 504
  • Stock: In Stock
  • Model: MS8000

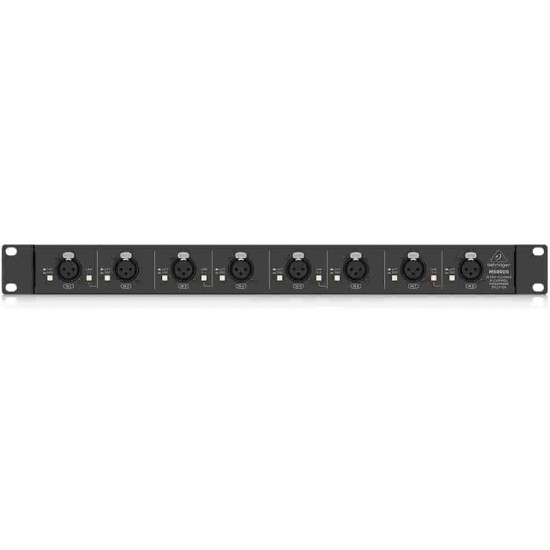

The ULTRALINK MS8000 from Behringer is an eight-channel microphone splitter suitable for recording consoles, monitoring systems, interfaces, and more. It features eight XLR inputs and sixteen XLR outputs, with each input automatically split into two outputs—one pre-transformer and one post-transformer—in order to feed different types of gear. Behringer MS8000 Specs Analog Audio Inputs Connectors: 8x XLR inputs Impedance: 1 kOhm, balanced Maximum Input Level: 30 dBu at 1 kHz Controls: 4x Link/8x Lift/Ground Analog Audio Outputs ConnectorsLink: 8x XLR outputs, parallel to inputs Direct: 8x XLR outputs Voltage Transformation Ratio-1:1.12 Impedance: 2.7 kOhms, balanced Maximum Output Level: 38 dBu at 1 kHz System Frequency Response: 30 Hz to 30 kHz (±0.5 dB at +4 dBu) THD+N: 0.02% at 1 kHz, input level +4 dBu Signal to Noise Ratio: 104 dBu CMRR: >80 dB, typical Insertion Loss: +8 dB at 100 kOhms / -5 dB at 600 Ohms Power Requirement: Passive.

FEATURES:

  • 8-in/16-out microphone splitter
  • Direct and Link outputs let you send pre- and post-transformer signals
  • Lift/Ground switch eliminates hum and other ground loop noises
  • Input Link function doubles your outputs
  • Passes phantom power from your console or mic pre to Direct Outputs
