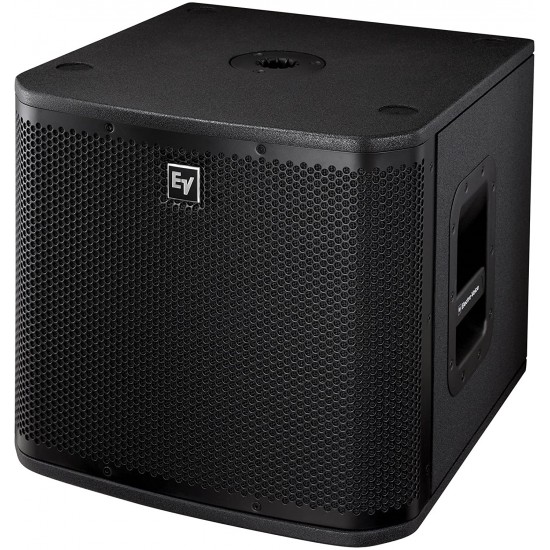

A range of features make the ZX1-Sub a standout choice in its class. Its EV-engineered 12” EVS-12S woofer operates in the 42 Hz to 200 Hz (-10 dB) frequency range and boasts a frequency response of 53 Hz – 125 Hz (-3 dB). The nominal impedance of the subwoofer is 8 ohms and its maximum sound pressure level is 127 dB. A robust, 15-mm-thick internally braced wooden enclosure with two side handles, a structured coating and a sturdy steel grille ensure both reliable performance and rugged durability in day-to-day use.The ZX1-Sub’s two recessed NL4 type connectors (2) are wired in parallel, permitting the input signal to be looped through and making it possible to operate full-range loudspeakers such as the ZX1 together with the ZX1-Sub using a single amplifi er channel. With its compact dimensions (40 x 44 x 46 cm), the latest member of the ZX series weighs-in a just under 20 kilos.

FEATURES

• Optimized for performance with a variety of EV loudspeakers, including ZX1, EVID, and EVU models
• Adds a deep low-frequency punch that you can feel as well as hear
• An ideal choice to complete a wide range of smaller fixed installations or live sound systems
• Features an EVS-12S 12" woofer for powerful, engaging bass response
• The plywood enclosure is made for lasting durability and lightweight requirements
• Solid, easy-to-grip handles on each side and pole mounts make it ideal for many applications
