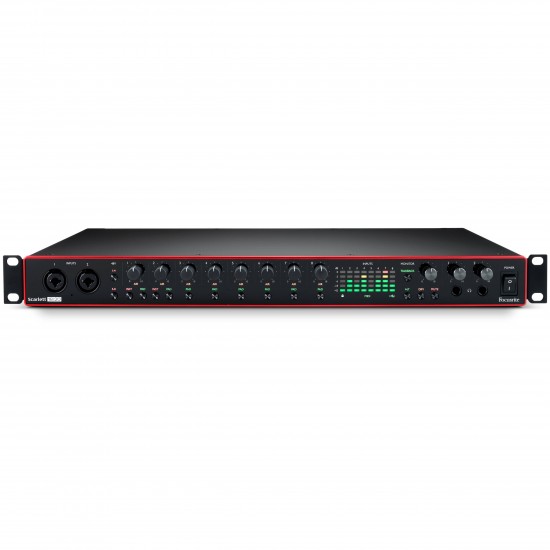

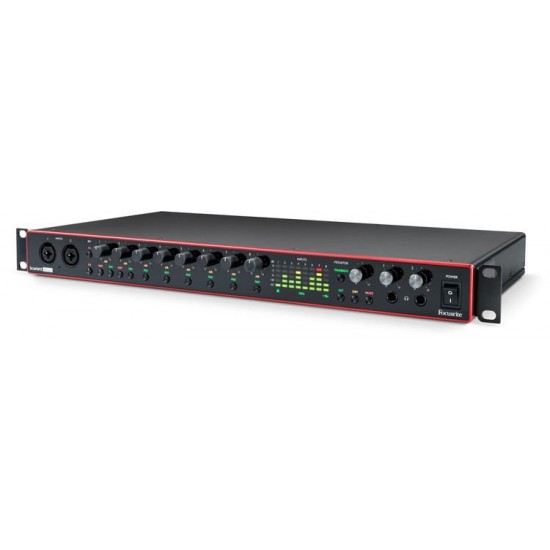

Focusrite Scarlett 18i20 3rd Gen USB Audio Interface






Focusrite Scarlett 18i20 3rd Gen USB Audio Interface
- Stock: In Stock
- Model: Scar18i20G3

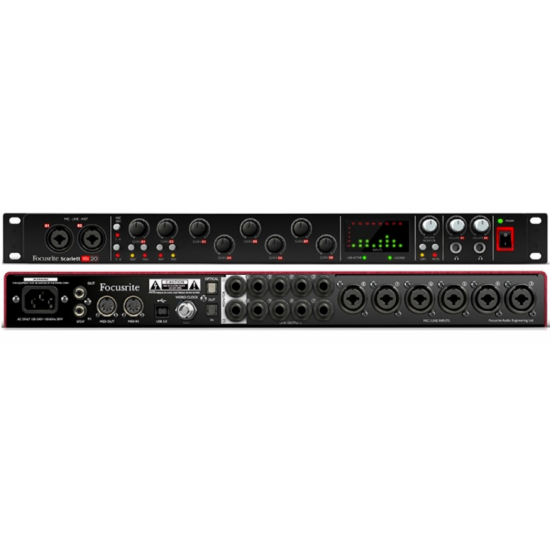

The third-generation Focusrite Scarlett 18i20 delivers a ton of firepower in an affordable package. Two vibrant Focusrite mic/instrument preamps are right on the front panel where you need them, while the back panel hosts a slew of extra I/O — up to 18-in/20-out simultaneously! Around back, you'll find six additional XLR combo inputs plus eight channels of ADAT I/O, S/PDIF and MIDI I/O, and word clock out. Focusrite made sure the Scarlett 18i20 has the features you need. Equipped with an onboard talkback to communicate with talent, 8-channel LED bar-graph meters, dual headphone outputs with independent level controls, and speaker switching for dual-monitor setups, the Focusrite Scarlett 18i20 is a solid foundation for serious project studios that may need to expand in the future. Plug in, fire up the bundled software, and you're ready to rock.
FEATURES
- High-performance 24-bit/192kHz converters
- 8 upgraded 3rd-generation Scarlett mic preamps
- Switchable Air mode gives your recordings a brighter, more open sound
- 2 high-headroom instrument inputs for bass, guitar, or synths
- 8 balanced mic/line inputs, total of 10 balanced line outputs
- 4 monitor outputs with anti-thump technology and speaker switching for dual-monitor setups
- 2 x ADAT optical I/O, S/PDIF I/O, MIDI I/O, word clock out
- Front-panel 8-channel, 5-segment LED bar-graph meters
- Super-low latency lets you monitor with native plug-in effects in real time
- Direct Monitor circuit for monitoring your input with guaranteed low-latency
- Virtual loopback makes podcasting, live streaming, and sampling easy
- Onboard talkback functionality with built-in front-panel talkback mic
- Dual headphone outputs with independent level controls
- Internal power supply (IEC mains cable included)
- Quick Start tool gets you up and running fast
- Free 3-month Splice Sounds subscription
- Included software bundle
- Membership in Focusrite Plug-in Collective
Audio Interfaces(Thunderbolt/ Ethernet/ Firewire/ USB/ Midi/ PCI | |
Max Sample Rate/Resolution | 192 kHz / 24-Bit |
Input Level Adjustment | 8 x Knob |
Host Connection | 1 x USB Type-C (USB 2.0) |
Analog I/O | 2 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input 6 x Combo XLR-1/4" TRS Balanced Mic/Line Input 10 x 1/4" TRS Balanced/Unbalanced Line/Monitor Output 2 x 1/4" TRS Unbalanced Headphone Output |
Phantom Power | +48 V, Selectable On/Off (on 8 Channels) |
Digital I/O | 1 x RCA Coaxial S/PDIF Input 1 x RCA Coaxial S/PDIF Output 1 x TOSLINK Optical ADAT / S/PDIF Input (S/MUX Support) 1 x TOSLINK Optical ADAT Input (S/MUX Support) 1 x TOSLINK Optical ADAT / S/PDIF Output (S/MUX Support) 1 x TOSLINK Optical ADAT Output (S/MUX Support) |
MIDI I/O | In/Out |
Sample Rates | Up to 192 kHz (AD/DA Conversion) |
Bit Depths | Up to 24-Bit (AD/DA Conversion) |
Compatibility | macOS 10.12 / 10.13 / 10.14 / 10.15 / 11 Windows 7 or Later |
Power Requirements | AC Input |
Dimensions | 19 x 10.23 x 1.83" / 48.3 x 25.98 x 4.65 cm |
Weight | 7.2 lb / 3.3 kg |
