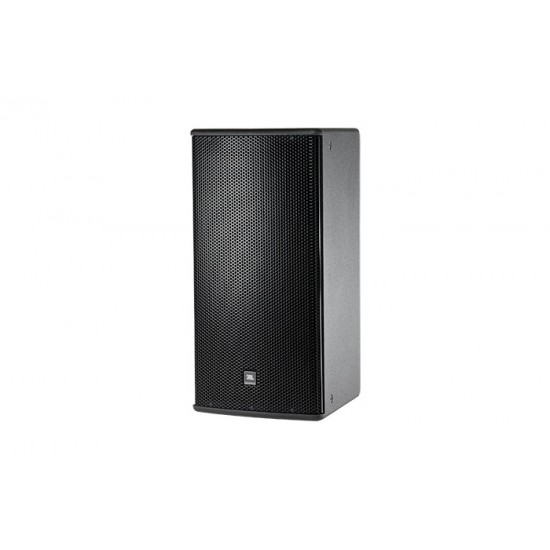

JBL AM5212/26 2-Way Loudspeaker System with 1 x 12" LF

JBL AM5212/26 2-Way Loudspeaker System with 1 x 12" LF

JBL AM5212/26 2-Way Loudspeaker System with 1 x 12" LF

AED 7,196
  • Stock: In Stock
  • Model: AM5212/26

AM5212/64 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 262H-1 300 mm (12 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT™ Progressive Transition waveguide provides excellent 60° x 40° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

FEATURES:

  • 60° x 40° Coverage
  • 262H-1 Differential Drive® Low-Frequency Driver
  • 2408H-1 High-Frequency Compression Driver
  • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  • Rotatable waveguide for vertical or horizontal orientation
  • Bi-Amp/Passive Switchable
  • Available in Black, White and WRC/WRX weather resistant finishes
PA Speakers
LF Drive Size 1 x JBL 262H-1 12" / 305 mm Driver with 2" / 50.8 mm Dual Voice Coil Nominal Impedance: 8 Ohms Sensitivity: 97 dB SPL (1W @ 1m, within Operational Band)
HF Drive Size JBL 2408H-1, 1.5" / 38 mm Exit Compression Driver, 1.5" / 38 mm Voice Coil Nominal Impedance: 8 Ohms Sensitivity: 113 dB SPL (1W @ 1m)
Inputs NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Enclosure material Trapezoidal with 15 Degree Side Angles, 5/8" / 16 mm Exterior Grade 11-Ply Birch Plywood
Weight 45 lb / 20.2 kg
