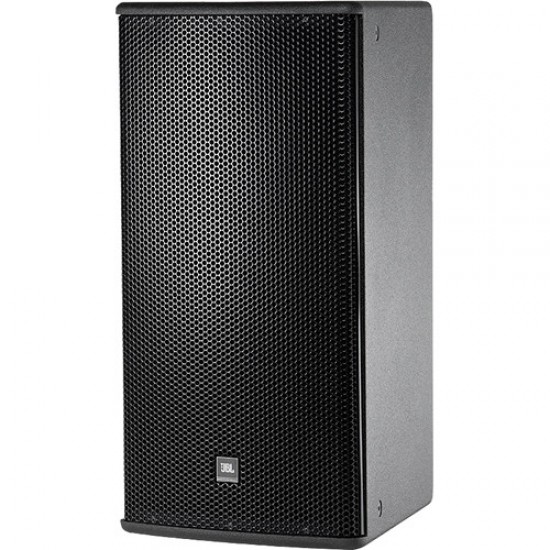

JBL AM5212/66 2-Way Loudspeaker System with 1 x 12" LF

JBL AM5212/66 2-Way Loudspeaker System with 1 x 12" LF

JBL AM5212/66 2-Way Loudspeaker System with 1 x 12" LF

AED 7,196
  • Stock: In Stock
  • Model: AM5212/66

The Am5212/66 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the jbl differential drive® dual voice coil and dual magnetic gap 262h-1 300 mm (12 in) low frequency driver and 2408h-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format pt™ progressive transition waveguide provides excellent 60° x 40° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

FEATURES:

  • 60° x 40° Coverage
  • 262H-1 Differential Drive® Low-Frequency Driver
  • 2408H-1 High-Frequency Compression Driver
  • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  • Rotatable waveguide for vertical or horizontal orientation
  • Bi-Amp/Passive Switchable
  • Available in Black, White and WRC/WRX weather resistant finishes
PA Speakers
LF Driver Power amp 1 x JBL 262H-1 300 mm (12 in ) driver with 50.8 mm (2 in) dual voice coil
HF Driver Power amp JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil
Inputs NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Enclosure material Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Weight 20.2 kg (45 lb)
