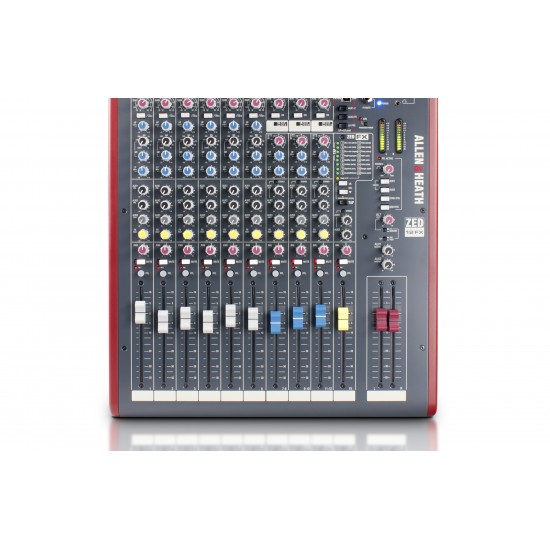

Allen & Heath ZED12FX 12-CH Mixer with USB Audio Interface and Built-In FX

Allen & Heath ZED12FX 12-CH Mixer with USB Audio Interface and Built-In FX
Allen & Heath ZED12FX 12-CH Mixer with USB Audio Interface and Built-In FX
Allen & Heath ZED12FX 12-CH Mixer with USB Audio Interface and Built-In FX
Allen & Heath ZED12FX 12-CH Mixer with USB Audio Interface and Built-In FX
Allen & Heath ZED12FX 12-CH Mixer with USB Audio Interface and Built-In FX
Allen & Heath ZED12FX 12-CH Mixer with USB Audio Interface and Built-In FX
Allen & Heath ZED12FX 12-CH Mixer with USB Audio Interface and Built-In FX
Allen & Heath ZED12FX 12-CH Mixer with USB Audio Interface and Built-In FX

Allen & Heath ZED12FX 12-CH Mixer with USB Audio Interface and Built-In FX

AED 2,484
  • Stock: In Stock
  • Model: ZED12FX

The Allen & Heath 12-CH Mixer with USB Audio Interface and Built-In FX ZED 12FX is a solid mixer with great effects! The Allen & Heath ZED-12FX is the perfect center to your live rig — and it's also ready to rock in the studio. First of all, the ZED-12FX gives you all the connections you need to hook up a small band, a duo, or a solo performer. Thanks to the 6 mic/line channels (these preamps are awesome, by the way) you can connect all the mics and DI boxes you need. Plus you've got three dual-stereo channels available, each with a gain control and a 2-band EQ. The FX in the name, though, is what takes the cake. Here, you can get tweaky with the ZED-12FX's 16 separate effects, for nailing the perfect, polished live sound.

FEATURES

  • 12-channel mixer with 6 mic/line inputs and 3 stereo line channels
  • Inserts on all mono channels
  • Configurable USB stereo audio input/output
  • 100mm smooth-action faders
  • Features 4 auxiliary sends: 2 pre, 1 post, and 1 post/FX
  • 6 channels with DuoPre microphone preamplifiers and highpass filters
  • Musical 3-band EQ on 6 main channels; 2-band EQ on the stereo channels
  • 16 built-in 24-bit effects, including delays, reverbs, flange, and chorus
  • 1/4" and 1/8" headphone outputs
  • 19" rackmounting kit available


Live Sound Mixers(Digital/ Analog/ Powered/ Line)
Type Analog
Channels 12
Computer Connectivity USB (2 x 2)
Faders 12 x 100mm
Inputs - Mic preamps 6 x XLR
Phantom Power 6
Inputs - Line 6 x 1/4" (CH 1-6), 6 x 1/4" (Ch 7-12 Stereo), 4 x RCA (Ch 7-10 Stereo)
Outputs - Main 2 x XLR (Main), 1 x 1/4" (Mono)
Outputs - Others 1 x 1/4" (Mono out), 2 x RCA (Alt out), 2 x RCA (Rec out)
AUX Sends 2 x Pre, 1 x Post, 1 x FX Post
Busses / Groups Alt
Headphones 1 x 1/4", 1 x 1/8"
USB 1 x Type B
EQ Bands 3-band, Sweepable Mid (CH 1-6), 2-band (CH 7-12 Stereo)
Effects Yes
Height 3.9"
Width 15.2"
Depth 18.3"
Weight 23.1 lbs.
Manufacturer Part Number AH-ZED12FX
