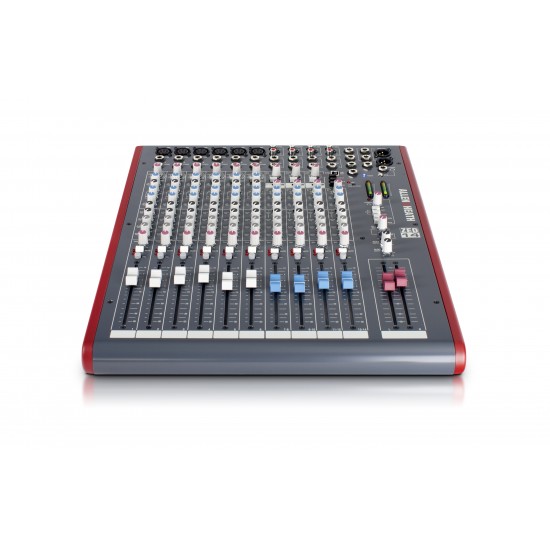

Allen & Heath ZED1402 14-CH Compact Analog Mixer with USB Interface

Allen & Heath ZED1402 14-CH Compact Analog Mixer with USB Interface
Allen & Heath ZED1402 14-CH Compact Analog Mixer with USB Interface
Allen & Heath ZED1402 14-CH Compact Analog Mixer with USB Interface
Allen & Heath ZED1402 14-CH Compact Analog Mixer with USB Interface
Allen & Heath ZED1402 14-CH Compact Analog Mixer with USB Interface
Allen & Heath ZED1402 14-CH Compact Analog Mixer with USB Interface
Allen & Heath ZED1402 14-CH Compact Analog Mixer with USB Interface
Allen & Heath ZED1402 14-CH Compact Analog Mixer with USB Interface
Allen & Heath ZED1402 14-CH Compact Analog Mixer with USB Interface
Allen & Heath ZED1402 14-CH Compact Analog Mixer with USB Interface

Allen & Heath ZED1402 14-CH Compact Analog Mixer with USB Interface

AED 1,983
  • Stock: In Stock
  • Model: ZED1402

The Allen & Heath 14-CH Compact Analog Mixer with USB Interface ZED 1402 is a mixer for anyone, from entry-level to professionals, who appreciates fantastic uncolored sound, lots of headroom, a truly professional feel, and rugged build quality. It can be used for many different tasks, whether in live performance, utilizing plug-in effects via USB, live recording via USB and Cakewalk, studio recording or mixing down to produce your own 2-track recordings. Inputs One of the great things about the ZED series is the number and variety of things you can plug in. In addition to the six mono channels there are four stereo channels, each with a main stereo input on jack sockets, and with the ability to take additional stereo inputs from phono sockets or from the USB audio input, flexibility gives you control. In all, ZED-14 boasts 99 different controls on its front panel-way more than any of the competition! 6 mic/line channels are provided on ZED-14 - plenty for mics or DI boxes for a small band, duo or solo performer 4 stereo line inputs-dual inputs, both with gain and 2-band EQ DuoPre Based on the proven pre-amps from the hugely successful PA series, the ZED series has new DuoPreTM pre-amps, which use a two stage design, with carefully controlled amounts of gain in each stage. When amplifying the signal from the XLR input, the gain range is huge-69dB of range to be exact-and is very evenly distributed around the gain control, meaning better control of signal level.

FEATURES

  • 12-channels
  • Latest technology MusEQ 3-band equalizer circuit on each mono channel
  • Six mono channels
  • Four stereo channels
  • A variety of input options
  • USB connection


Live Sound Mixers(Digital/ Analog/ Powered/ Line)
Type Analog
Channels 14
Computer Connectivity USB (2 x 2)
Faders 12 x 100mm
Inputs - Mic preamps 6 x XLR (CH 1-6)
Phantom Power 6
Inputs - Line 6 x 1/4" (CH 1-6), 8 x 1/4" (CH 7-14 Stereo)
Outputs - Main 2 x XLR (Main), 1 x 1/4" (Mono Out)
Outputs - Others 2 x RCA (Alt), 2 x RCA (Rec)
AUX Sends 2 x Pre, 2 x Post
Busses / Groups Alt
Headphones 1 x 1/4", 1 x 1/8"
USB 1 x Type B
EQ Bands 3-band, Sweepable Mid (CH 1-6), 2-band (CH 7-14 Stereo)
Height 3.86"
Width 15.2"
Depth 18.3"
Weight 14.3 lbs.
Manufacturer Part Number AH-ZED14
