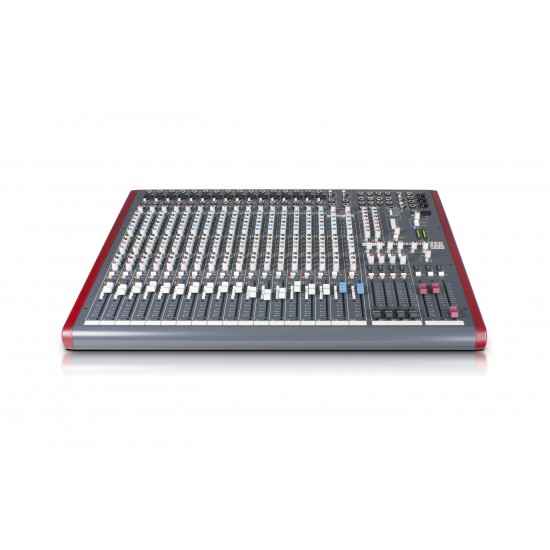

Allen & Heath ZED2042 20-CH 4-Bus Analog Mixer with USB Interface

Allen & Heath ZED2042 20-CH 4-Bus Analog Mixer with USB Interface
Allen & Heath ZED2042 20-CH 4-Bus Analog Mixer with USB Interface
Allen & Heath ZED2042 20-CH 4-Bus Analog Mixer with USB Interface
Allen & Heath ZED2042 20-CH 4-Bus Analog Mixer with USB Interface
Allen & Heath ZED2042 20-CH 4-Bus Analog Mixer with USB Interface
Allen & Heath ZED2042 20-CH 4-Bus Analog Mixer with USB Interface
Allen & Heath ZED2042 20-CH 4-Bus Analog Mixer with USB Interface
Allen & Heath ZED2042 20-CH 4-Bus Analog Mixer with USB Interface
Allen & Heath ZED2042 20-CH 4-Bus Analog Mixer with USB Interface
Allen & Heath ZED2042 20-CH 4-Bus Analog Mixer with USB Interface

Allen & Heath ZED2042 20-CH 4-Bus Analog Mixer with USB Interface

AED 6,701
  • Stock: In Stock
  • Model: ZED2042

The Allen & Heath 20-CH 4-Bus Analog Mixer with USB Interface ZED-420 is excellent for bands, houses of worship, theatres or AV applications. It has a truly professional feature set, which will fit any sound reinforcement application and professional PA hire stock. ZED-420 has Configurable USB audio in/out makes it easy to capture stereo recordings, 16 mic or line inputs plus 2 dual stereo inputs, 4-band EQ with MusiQ, 4 sub-groups, 6 auxiliary sends and a 7×2 matrix.

FEATURES

  • 16 mono channels
  • 2 dual stereo inputs with 4-band EQ
  • Neutrik mic XLR
  • Neutrik 1/4 inch jacks
  • Channel insert
  • Super wide gain ‘DuoPre’ mic line input
  • 4-band EQ with 2 swept mids and in/out switch
  • Illuminated mute
  • Sound image pan
  • Illuminated PFL & peak warning indicator
  • ALPS 100mm faders
  • 6 auxiliary sends (2 pre, 2 post, 2 pre/post)
  • 4 sub groups fed from each channel
  • All inputs with level control
  • 12 bar meters
  • L, R and M main mix outputs
  • 2 matrix sections available; can send output to USB
  • Individual channel 48V phantom power
  • Direct output on every mono channel
  • Peak and signal indication on every channel
  • Configurable USB stereo audio in/out
  • Master level controls on all outputs
  • Easy to use layout – all connections and controls on top surface


Live Sound Mixers(Digital/ Analog/ Powered/ Line)
Type Analog
Channels 20
Computer Connectivity USB (2 x 2)
Faders 25 x 100mm
Inputs - Mic preamps 16 x XLR
Phantom Power 16
Inputs - Line 16 x 1/4" (CH 1-16), 4 x 1/4" & 4 x RCA (CH 17-20 Stereo), 2 x RCA (2 TRK)
Outputs - Main 2 x XLR (Main), 1 x XLR (Mono)
Outputs - Direct 16 (CH 1-16)
Outputs - Others 2 x 1/4" (Matrix), 2 x RCA (2TRK), 4 x 1/4" (Group)
AUX Sends 2 x Pre, 2 x Post, 2 x Pre/Post
Busses / Groups 4 x Groups
Headphones 1 x 1/4", 1 x 1/8"
USB 1 x Type B
EQ Bands 4-band, Sweepable Hi- and Low-Mids (CH 1-16), 4-band (CH 17-20 Stereo)
Effects N/A
Height 5.25"
Width 28.2"
Depth 22.1"
Weight 31 lbs
Manufacturer Part Number AH-ZED420
