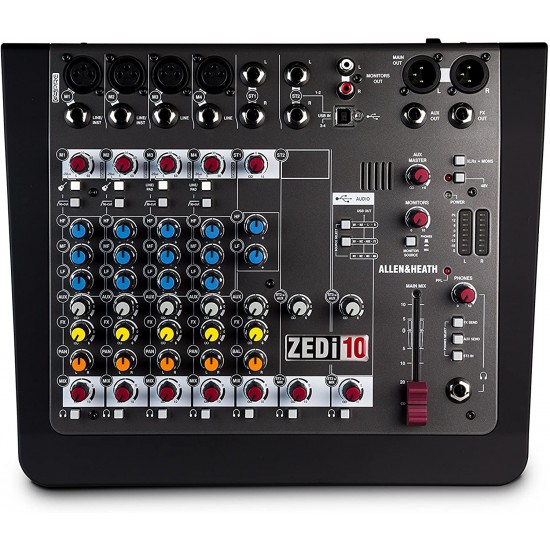

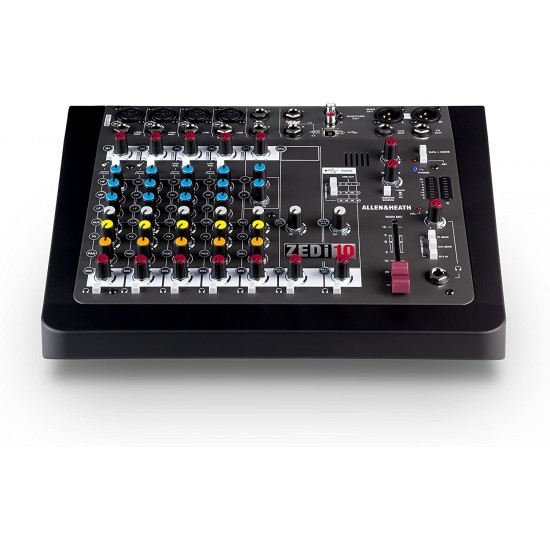

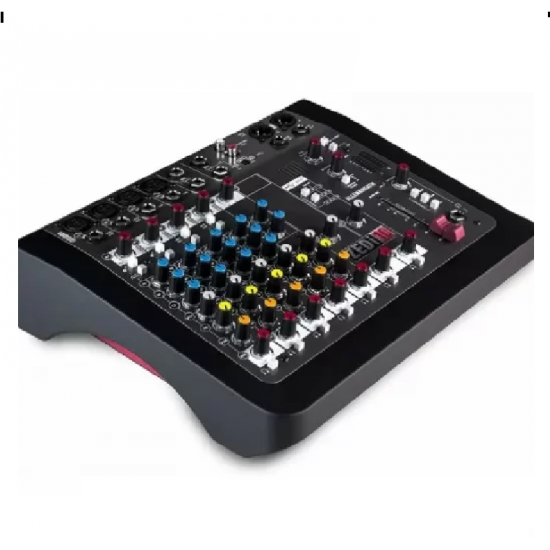

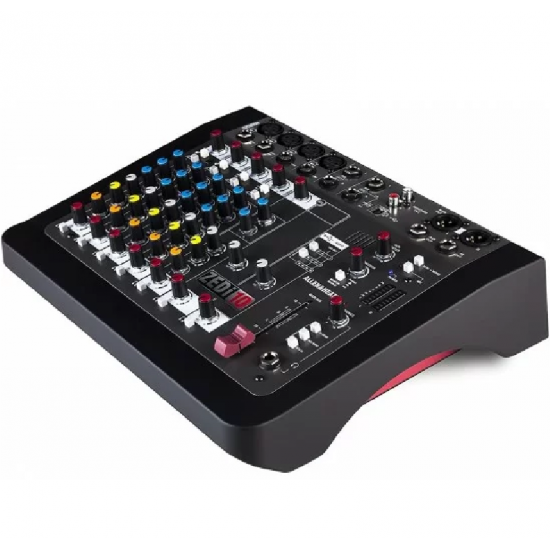

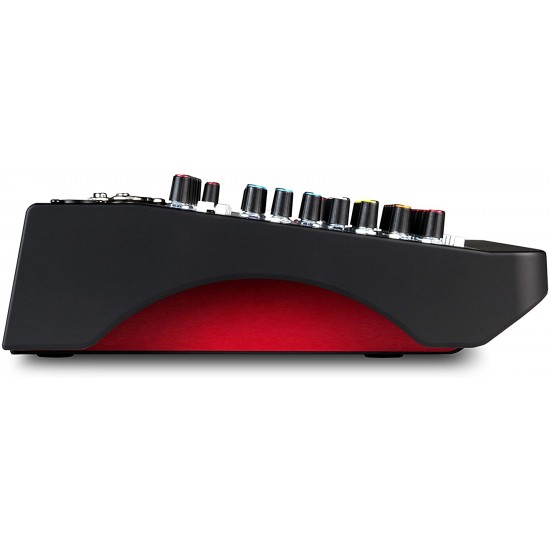

Allen & Heath ZEDi10 10-CH Analog Mixer with USB Interface

AED 1,174
  • Stock: In Stock
  • Model: ZEDi10

The Allen & Heath 10-CH Analog Mixer with USB Interface ZEDi 10 has excellent sound quality and a built-in 4 x 4 USB audio interface, the Allen & Heath ZEDi-10 is a smart mixer for small-format studio and stage applications. Connect up to four microphones or line-level sources, or even two instruments without the need for DI boxes. Two additional stereo channels are available for synthesizers, drum machines, and other line-level sources. Record and play back up to four channels of 24-bit/96kHz audio via USB without the need for a separate interface. Factor in its exceptional build quality, and the compact Allen & Heath ZEDi-10 mixer stands out in its class.

FEATURES

  • Rugged compact mixer with 4 mono channels, 2 stereo channels, and USB recording/playback
  • 4-in/4-out USB 2.0 interface supports 24-bit/96kHz audio quality
  • Includes Cubase LE DAW software for Mac/PC, and Cubasis LE app for iOS
  • GSPre mic preamps offer high headroom and low noise floor
  • Connect guitars and basses without separate DI boxes thanks to switchable hi-Z inputs
  • Low-cut filters to reduce rumble and other unwanted low frequencies
  • Effective sound shaping from 3-band EQs
  • Channels can be individually assigned to the headphone mix
  • XLR outputs for studio monitors or powered PA speakers
  • Smooth 60mm fader for controlling your main mix
  • Rotary controls are secured to the faceplate with steel nuts for maximum durability
Live Sound Mixers(Digital/ Analog/ Powered/ Line)
Type Analog mixer with USB interface
Channels 10
Computer Connectivity USB (4 x 4)
Faders 1 x 60mm Main Mix fader
Inputs - Mic preamps 4
Phantom Power 4
Inputs - Line 4 x 1/4" TRS (2 x instrument high impedance)
Outputs - Main 2 x XLR (left, right), 2 x RCA (stereo)
Outputs - Others 1 x 1/4" (aux out), 1 x 1/4" (FX out/footswitch)
AUX Sends 1 x Aux send, 1 x FX send
Headphones 1 x 1/4"
USB 1 x USB Type B
EQ Bands 3-band EQ
Height 3.8"
Width 13.1"
Depth 10.8"
Weight 4.85 lbs.
Manufacturer Part Number AH-ZEDi10
