Allen & Heath ZED3642 36-CH 4-Bus Analog Mixer with USB Interface

Allen & Heath ZED3642 36-CH 4-Bus Analog Mixer with USB Interface
Allen & Heath ZED3642 36-CH 4-Bus Analog Mixer with USB Interface
Allen & Heath ZED3642 36-CH 4-Bus Analog Mixer with USB Interface
Allen & Heath ZED3642 36-CH 4-Bus Analog Mixer with USB Interface
Allen & Heath ZED3642 36-CH 4-Bus Analog Mixer with USB Interface
Allen & Heath ZED3642 36-CH 4-Bus Analog Mixer with USB Interface
Allen & Heath ZED3642 36-CH 4-Bus Analog Mixer with USB Interface
Allen & Heath ZED3642 36-CH 4-Bus Analog Mixer with USB Interface
Allen & Heath ZED3642 36-CH 4-Bus Analog Mixer with USB Interface
Allen & Heath ZED3642 36-CH 4-Bus Analog Mixer with USB Interface

Allen & Heath ZED3642 36-CH 4-Bus Analog Mixer with USB Interface

AED 10,778
  • Stock: In Stock
  • Model: ZED3642

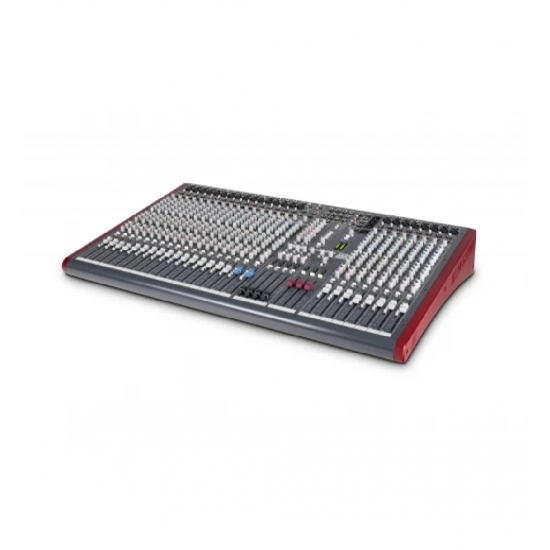

The Allen & Heath 36-CH 4-Bus Analog Mixer with USB Interface ZED 3642 gives you all the essentials you need for flexible live mixing: 32 channels with smooth, long-throw faders, 4-band EQ with swept mids, six aux sends, and four sub groups. You also get a direct output on every channel and master level controls on all outputs. It's an incredible amount of flexibility, at a great value, but Allen & Heath added another dimension of functionality to the ZED-436: USB connectivity! Now you can get clean, clear audio straight into and out of your computer with the ZED-436.

FEATURES

  • 32 Channel
  • 4-band EQ with 2 swept mids and in/out switch
  • 6 auxiliary sends (2 pre, 2 post, 2 pre/post)
  • 4 sub groups fed from each channel
  • L, R and M main mix outputs
  • Individual channel 48V phantom power
  • Direct output on every mono channel
  • 2 dual stereo inputs with 4-band EQ
  • Peak and signal indication on every channel
  • 2 matrix sections available; can send output to USB
  • Configurable USB stereo audio in/out
  • Master level controls on all outputs
  • Easy to use layout - all connections and controls on top surface
Live Sound Mixers(Digital/ Analog/ Powered/ Line)
Type Analog
Channels 32
Computer Connectivity USB (2 x 2)
Faders 41 x 100mm
Inputs - Mic preamps 32 x XLR
Phantom Power 32
Inputs - Line 32 x 1/4" (CH 1-32), 4 x 1/4" & 4 x RCA (CH 33-36 Stereo), 2 x RCA (2 TRK)
Outputs - Main 2 x XLR (Main), 1 x XLR (Mono)
Outputs - Direct 32
Outputs - Others 2 x 1/4" (Matrix), 2 x RCA (2TRK), 4 x 1/4" (Group)
AUX Sends 2 x Pre, 2 x Post, 2 x Pre/Post
Busses / Groups 4 x Groups
Headphones 1 x 1/4", 1 x 1/8"
USB 1 x Type B
EQ Bands 4-band, Sweepable Hi- and Low-Mids (CH 1-32), 4-band (Stereo Channels)
Effects N/A
Height 5.08"
Width 44.4"
Depth 22.1"
Weight 58.3 lbs.
Manufacturer Part Number AH-ZED436
