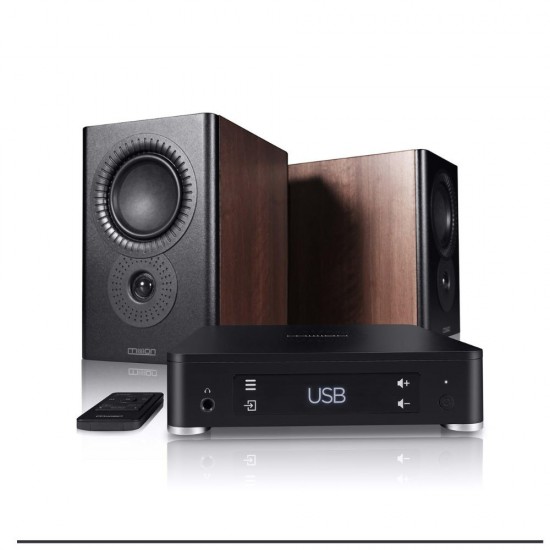

The Mission LX CONNECT wireless speaker system is Missions first ‘True Wireless’ speaker system. Utilising innovative wireless technologies and combining it with the award-winning LX MKII Series speakers, the Mission LX CONNECT offers a new level of convenience and performance that changes the game for all wireless speaker systems.

LX CONNECT offers wireless connectivity via an advanced wireless hub which hosts all of the connectivity options for your listening pleasure. The LX CONNECT HUB intelligently transmits left and right audio signals to the appropriate speaker via uncompressed, 5.8Ghz wireless audio signal transmission. There is no trailing cable between speakers or hub with no need for the speakers to be connected together via a cable, for ‘True Wireless’ audio.

KEY FEATURES

• High-Powered Digital Amplification Delivers a robust 60W per speaker (120W total) using specially engineered Class D modules derived from the acclaimed LX-2 MKII series.
• Inverted Driver Geometry Design
  Maintains Mission’s signature layout for accurate transient response and striking sonic detail.
• Mission DiaDrive Bass Units
  Advanced diaphragm control ensures powerful, tight low-end reproduction with refined high frequencies.
• Precision-Tuned Crossover & Cabinet Bracing
  Ensures clean signal separation and reduces unwanted vibrations—punching well above its price class.
• Immersive Stereo Imaging
  Creates a rich, room-filling audio experience for music, movies, and games.

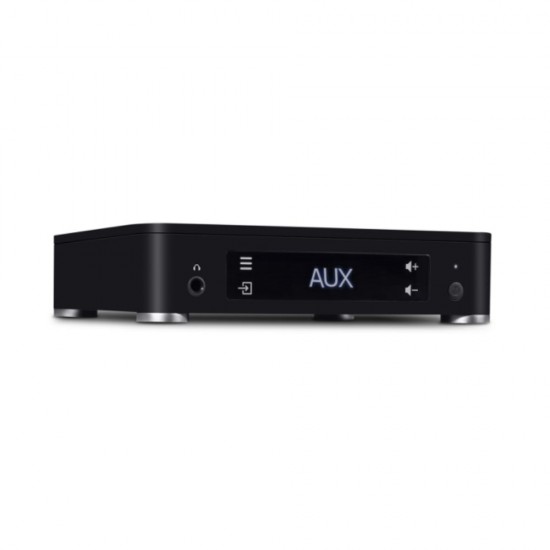

• Advanced Wireless Hub (LX CONNECT HUB)
  Acts as a standalone central unit with:

• Analogue, Optical, and Coaxial digital inputs
• HDMI ARC for seamless TV and gaming integration
• Bluetooth aptX for wireless streaming in high resolution
• USB DAC functionality with ESS Sabre32 ES9018K2M reference-grade chip
• Hi-Fi Headphone Amplifier
  Integrated amp offers audiophile-quality headphone output, outperforming many dedicated headphone DACs.
• User-Friendly Control System
  Features a tactile interface with an OLED display and a handy remote control for easy navigation—no more reaching behind the unit.
• Elegant Finish Options
  Available in Lux Black, Lux White, and classic Walnut Pearl—designed to blend beautifully with modern interiors.
• Roon Ready Integration
  Fully compatible with Roon’s immersive music interface, offering:

• Artist bios, lyrics, and credits
• Seamless navigation between personal files and TIDAL's massive library
• Audiophile features like bit-perfect playback, DSD/PCM upsampling, and multichannel support

General

• Product Type: Wireless Speaker System
• Core Technology: 5.8GHz Wireless (Uncompressed transmission)
• DAC: ESS Sabre 9018
• Modes Supported: Music & Movie Modes
• Touch Control: Yes
• Roon Tested: Yes
• USB Upgrade Support: Yes
• Pre-Delay Setting: Yes

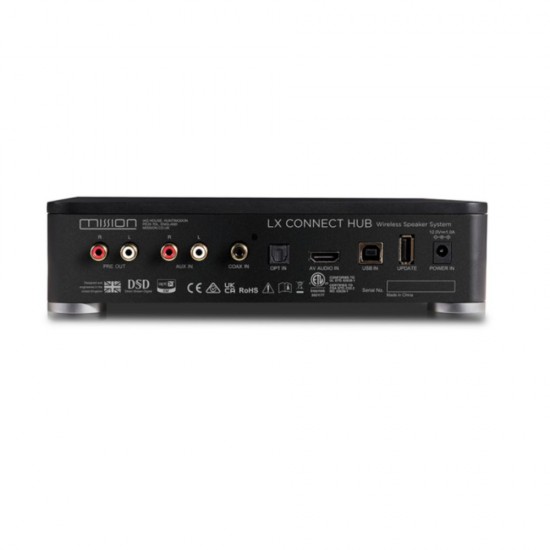

Inputs & Outputs

• Analogue Input: RCA (AUX)
• Digital Inputs: Optical (OPT), Coaxial (COAX), PC USB, Bluetooth, AV Audio
• Analogue Output: RCA Pre Out

Pre-Amplifier (Hub) Performance

• Input Sensitivity: 300mV (AUX IN, volume = max)
• Input Impedance: 13K Ohms (AUX IN)
• Variable Output Voltage: 0 – 3.2V
• Output Impedance: 100 Ohms
• Frequency Response: 20Hz – 20kHz (±0.3dB)
• Signal-to-Noise Ratio:

• 100dB (AUX IN, A-weighted)

• 110dB (Digital Inputs, A-weighted)

• Total Harmonic Distortion (THD):
• <0.001% (Digital Sources)
• <0.005% (Analogue Sources)
• Sampling Rates:

• 24bit / 192kHz (OPT, COAX)
• 32bit / 384kHz (USB PCM)
• DSD: 2.8M (DSD64), 5.6M (DSD128), 11.2M (DSD256) via USB
• Digital Filter Options: Fast Roll-off, Slow Roll-off, Minimum Phase

Active Speakers

• Enclosure Type: Bass Reflex
• Transducer System: 2-way
• Drive Units:
• Bass: 130mm Composite Fibre Cone
• Treble: 25mm Microfibre Dome
• AV Shielding: No
• Rated Output Power: 60W per speaker
• Peak Output Power: 100W
• Maximum SPL: 99dB
• Frequency Response: 58Hz – 20kHz (±3dB)
• Bass Extension: 52Hz (-6dB)
• Crossover Frequency: 3.2kHz
• Wireless Reception Range: Up to 20m
• Cabinet Volume: 8.2 Litres

Dimensions

• Speakers:
• Height: 305mm
• Width: 200mm
• Depth: 265mm (including terminals)
• Hub:

• Height: 55mm
• Width: 225mm
• Depth: 231mm

Weight

• Net Weight:
• Speakers: 6.55kg each
• Hub: 1.75kg
• Gross Weight (system): 17.8kg

Finish Options

• Speakers: Walnut Pearl, Lux White, Lux Black
• Hub: Black

Power Requirements

• Voltage: 100–240V AC
• Frequency: 50/60Hz
