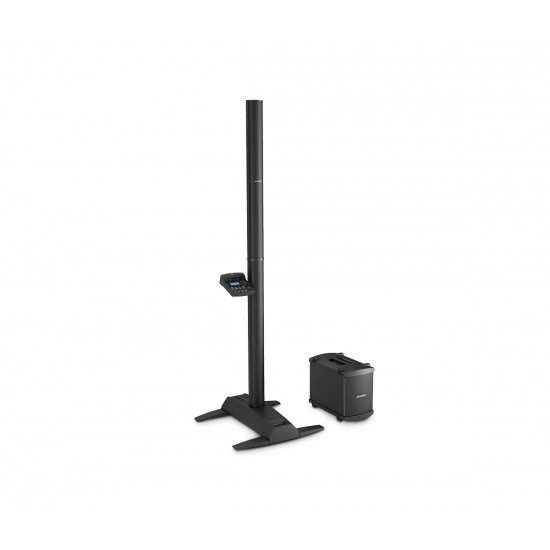

The Bose L1 Model 1S with B1 Bass and ToneMatch Audio Engine delivers the audio fidelity expected from Bose in a sleek, lightweight and portable unit that's ideally suited for musicians, mobile DJs, and performances, and other sound reinforcement applications. The ToneMatch audio engine features a 5-channel mixer that connects to the speaker's base. The mixer features three mic/line input channels 1, 2, and 3 that accept XLR and 1/4" TRS connections, while channels 4 and 5 are a paired 1/4" TRS input.The ultra-low noise preamps provide high signal to noise ratio, and Bose's Proprietary ToneMatch presets optimize the L1 system to match the intended natural sound of specific instruments and microphones. Also included is the Bose B1 Bass module for reinforcing low-end frequencies and enhancing the sound of a bass guitar, DJ rigs and more. The speaker features 12 small drivers, carefully positioned to ensure balanced audio signal at the direct and off-axis (sides) of the system. Setting up the L1 Model 1S is quick and easy; simply place the speaker extensions into the amplifier base, and slide the speaker on top of the extensions. Two extensions are included, and allow easy height adjustment.

FEATURES

• Spatial Dispersion and Articulated Array speaker technologies in the loudspeaker produce wide, uniform sound coverage. The 12 small drivers are arranged using Articulated Array speaker technology in a slim, vertical enclosure—creating nearly 180 degrees of horizontal coverage and consistent tonal balance
• Integrated power amplifiers in the power stand provide clean, precise amplification for L1 Model 1S system with up to two B1 bass modules or one B2 bass module
• ToneMatch port on power stand for digital audio and power connection to ToneMatch audio engine
• Analog input, trim control and signal/clip LED for line-level analog input via 1/4" TRS phone cable. Can be used for instruments or other audio sources like DJ mixers, MP3 players, computers or DVD systems
• Bass module out for amplified bass output signal to the bass module. L1 system automatically adjusts equalization appropriately when bass modules are connected
• Interlocking design of the four lightweight components eliminates the need for speaker stands and speaker wires. Setup takes only minutes
• Retractable legs provide stability for streamlined power stands and loudspeakers. Four retractable legs fold out of power stand simultaneously for quick setup and compact transport
