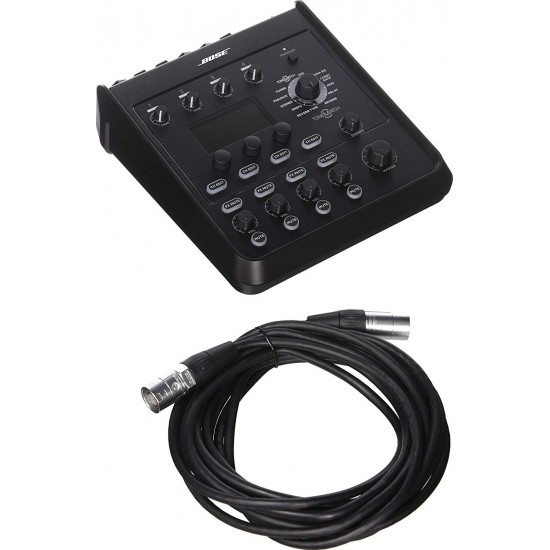

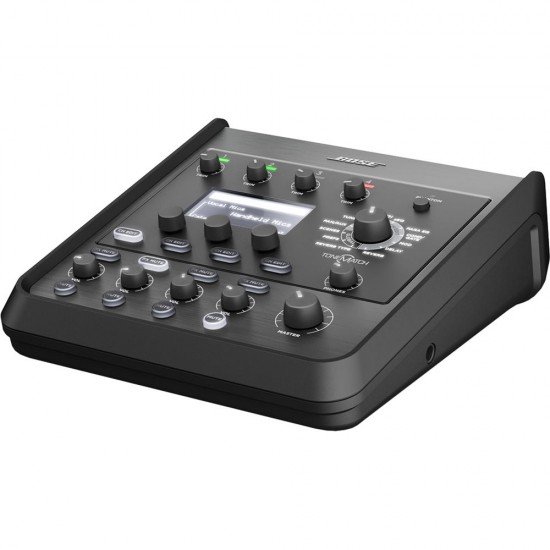

BOSE T4S Tone Match mixer, an ultra-compact 4-channel interface designed for performers. Engineered with a powerful DSP engine and intuitive user control, the T4S offers studio-quality EQ, dynamics and effects. Sound great with integrated Bose Tone Match processing and ZEQ, especially when connected to a Bose L1 or F1 system for full end-to-end tonal control. Play confidently on stage with the rugged T4S using its tactile controls, easy-to-read LED display and scene recall. The T4S; a true performer’s companion.

• Studio-quality effects with advanced digital audio processing
• Compressor, limiter, de-esser, noise gate, chorus, flanger, phaser, tremolo, delay, and reverb available
• Bose ToneMatch processing for natural sounding vocals and instruments
• zEQ focuses the sound of ToneMatch presets for effective adjustments on the fly
• Independent ToneMatch, EQ, dynamic, and effects per channel
• Dedicated reverb on Aux 1 send and a global shared reverb for use across all channels
• Master output EQ helps compensate for venue acoustics
• Full end-to-end tonal optimisation when used with Bose L1 and F1
•


Specification

Type:                                                            Digital Mixer for Bose L1 Model 1S/II

Channels:                                                4

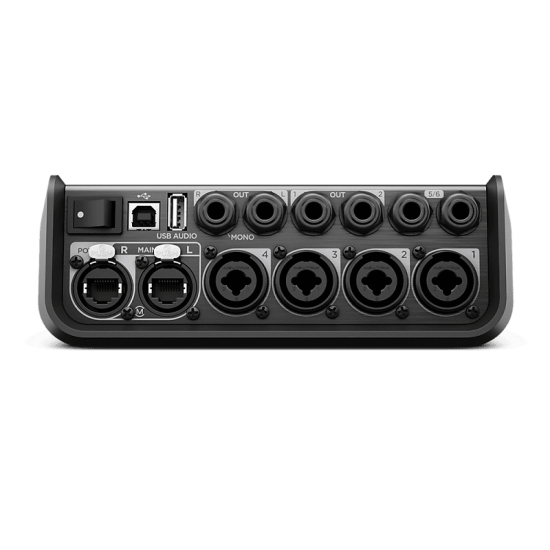

Inputs - Mic Preamps:                4 x XLR-1/4" combo (mic/line)

Phantom Power:                              Yes

Inputs - Line:                                         2 x 1/4" (5/6 line in)

Outputs - Main:                                   2 x 1/4" (main)

Outputs - Digital:                               2 x EtherCon (ToneMatch Ports only)

Send/Return I/O:                               2 x 1/4" (send 1,2)

USB:                                                              1 x Type B, 1 x Type A

Computer Connectivity:            USB

Headphones:                                        1 x 1/4" (headphones)

EQ Bands:                                                 zEQ, ToneMatch presets, Parametric EQ

Effects:                                                       Reverb, Delay, Modulation, Flanger, Phaser, Tremolo

Signal Processing:                           Compressor, Gate

Power Source:                                     EtherCon ToneMatch /ToneMatch power supply

Height:                                                    3.25"

Depth:                                                         8.4"

Width:                                                         7.25"

Weight:                                                       2.1 lbs.

Manufacturer Part Number:785403-0110
