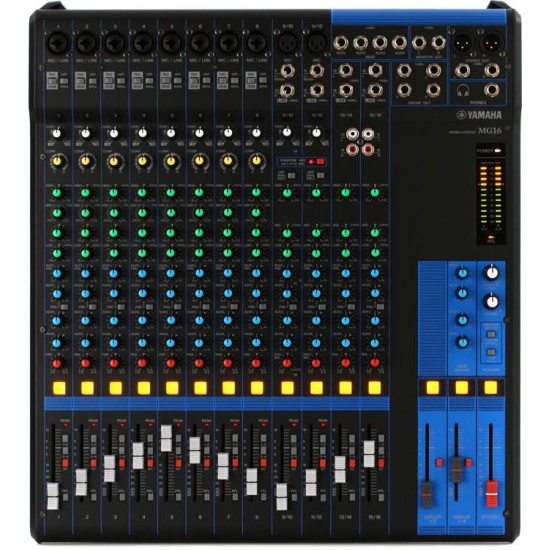

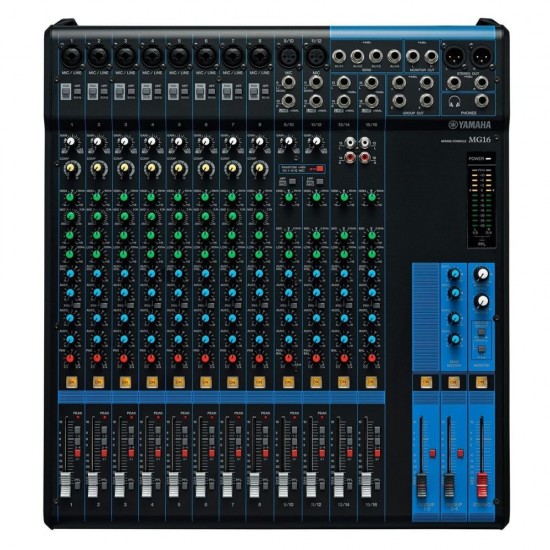

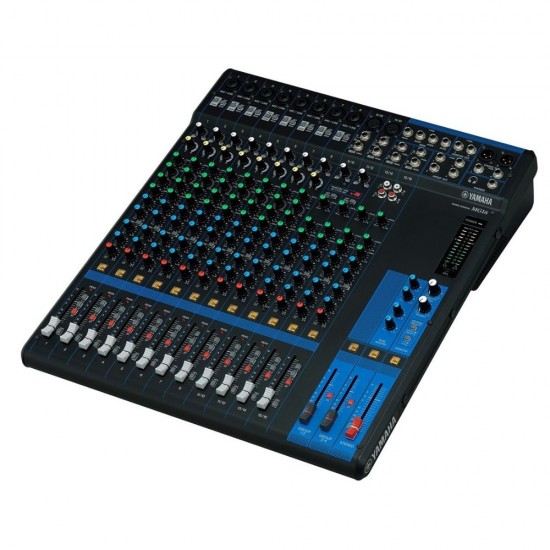

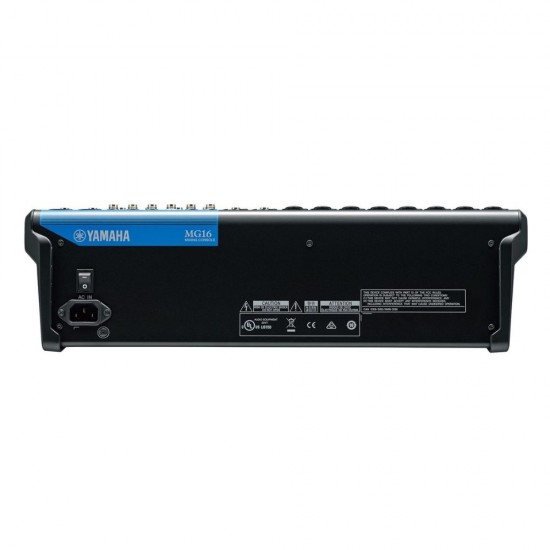

Yamaha MG16 Analog Mixing Console

Yamaha MG16 Analog Mixing Console

Yamaha MG16 Analog Mixing Console

AED 2,184
  • Stock: In Stock
  • Model: MG16
  • Weight: 8.50kg

The MG mixers offer an extraordinary blend of technology: some inherited from professional Yamaha mixing consoles you're likely to see in distinguished halls throughout the world, and some developed specifically to deliver optimum performance in the MG-console format. In either case these performance-packed mixers are founded on a world-spanning network of human and technological resources that crystallize to deliver features that really matter, and sound that is undeniably superior.

Feature-rich and delivering outstanding sound quality, the Yamaha MG16 analog mixer is well-suited for portable rigs or permanent installations. The MG16's quality op-amp ensures that your mix sounds transparent and articulate. The MG16's crystal clear D-PRE preamps will squeeze every drop of tone from your mics, with natural-sounding bass and smooth highs. Featuring switchable phantom power, a pad switch, one-knob compressors, EQ, plenty of I/O, and LED metering, the MG16 can take on just about any task you throw at it. Utilizing many state-of-the-art features from Yamaha's high-end consoles, the MG16 is ready to work for you!


  • D-PRE mic preamps deliver clean, transparent, and natural sound
  • 3-band EQ on all mono channels for sound-shaping
  • 1-knob compressors provide straightforward dynamics control
  • Pad switch on mono inputs for managing loud sources
  • Metal chassis for durability
  • Rackmount kit included
Live Sound Mixers(Digital/ Analog/ Powered/ Line)
Type Analog Mixer
Channels 16
Faders 15
Inputs - Mic preamps 8 x XLR/TRS Combo, 2 x XLR
Phantom Power Yes, 12 Channels
Inputs - Line 8 x TRS, 4 x RCA
Outputs - Main 2 x XLR, 2 x TRS
Outputs - Direct 2 x TRS (Monitor)
Outputs - Others 4 x TRS
AUX Sends 2 x Pre/Post, 2 x Post
Busses / Groups 4 x Bus
Headphones 1 x 1/4"
EQ Bands 3-band, Sweepable Mid
Height 5.1"
Width 17.5"
Depth 19.7"
Weight 14.6 lbs.
Manufacturer Part Number MG16
